How to Zone Your Irrigation System for Different Plant Types

Understanding Irrigation Zones: The Foundation of Water-Efficient Gardening

Proper irrigation zoning is one of the most critical decisions you'll make when designing a water-efficient landscape. By grouping plants with similar water needs together, you can reduce water waste by up to 50% while ensuring each plant receives exactly what it needs to thrive.

Whether you're managing a backyard garden, small farm, or expansive outdoor space, understanding how to zone your irrigation system will save you money, conserve water, and create healthier plants.

What Is Irrigation Zoning?

Irrigation zoning is the practice of dividing your landscape into separate watering areas based on plant water requirements, sun exposure, soil type, and slope. Each zone operates independently, allowing you to customize watering schedules and duration for different plant groups.

Think of it like climate control in your home—you wouldn't heat your entire house to the same temperature. Similarly, your lawn, vegetable garden, and shade-loving perennials all have different hydration needs.

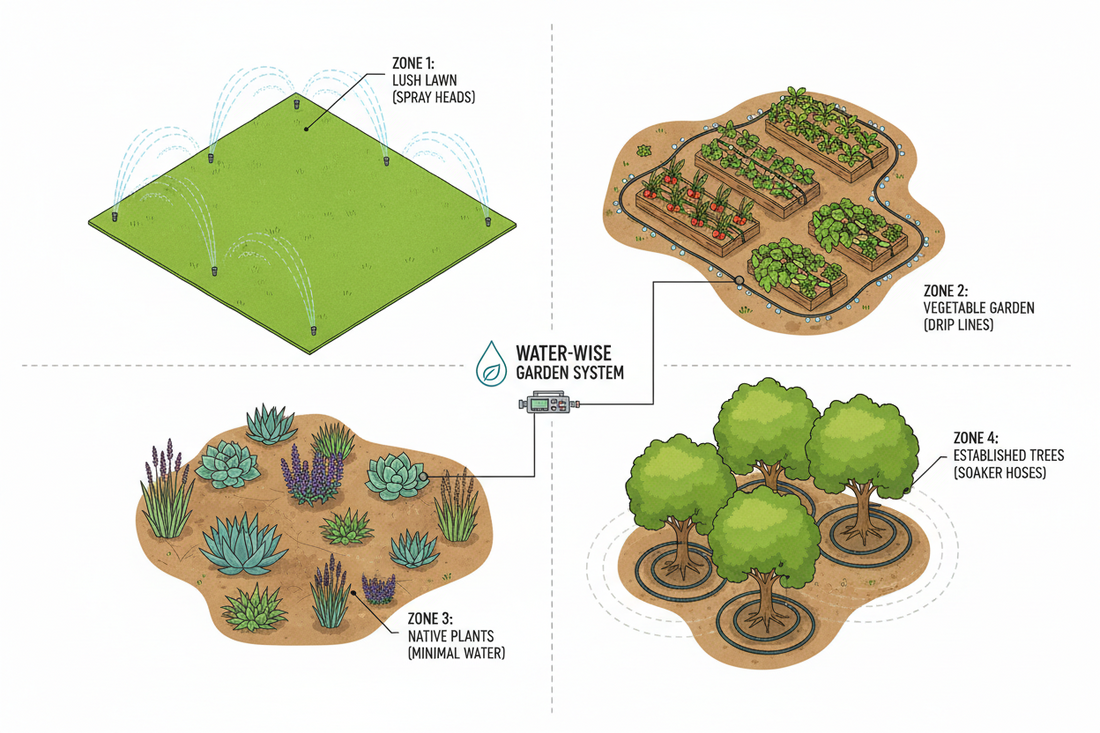

The Four Primary Plant Water Zones

1. High Water Zone (Hydrozones)

These areas require frequent, deep watering and include:

• Vegetable gardens and annual flower beds
• Newly planted trees and shrubs (first 2-3 years)
• Lawns and turf grass
• Container gardens and raised beds

Irrigation recommendation: Drip irrigation with 1-2 GPH emitters or spray heads with 1.5-2 inches of water per week during growing season.

2. Moderate Water Zone

Established plants that need regular but less frequent watering:

• Established perennial gardens
• Ornamental grasses
• Most flowering shrubs
• Fruit trees and berry bushes

Irrigation recommendation: Drip irrigation with 0.5-1 GPH emitters or soaker hoses, watering 1-1.5 inches per week.

3. Low Water Zone (Xeriscape)

Drought-tolerant plants requiring minimal supplemental water:

• Native plants adapted to your region
• Succulents and cacti
• Mediterranean herbs (lavender, rosemary, sage)
• Established drought-resistant shrubs

Irrigation recommendation: Drip irrigation with 0.5 GPH emitters, watering deeply but infrequently (every 2-3 weeks once established).

4. No Irrigation Zone

Areas that rely entirely on natural rainfall:

• Mature native trees
• Naturalized meadow areas
• Hardscape and mulched areas

Key Factors to Consider When Creating Zones

Sun Exposure

Plants in full sun (6+ hours daily) will need significantly more water than those in partial shade or full shade. Create separate zones for sunny and shaded areas, even if they contain similar plant types.

Soil Type

Sandy soils drain quickly and require more frequent watering with shorter run times. Clay soils hold moisture longer but need slower application rates to prevent runoff. If your property has varying soil types, zone accordingly.

Slope and Drainage

Sloped areas require shorter, more frequent watering cycles to prevent runoff. Flat areas can handle longer watering sessions. Low-lying areas that collect water should be zoned separately or may need drainage solutions before irrigation.

Plant Maturity

Newly planted areas need more frequent watering than established landscapes. Consider creating temporary zones for new plantings that can be adjusted as plants mature.

Step-by-Step Guide to Zoning Your System

Step 1: Map Your Property

Create a simple sketch showing:

• All planted areas and their plant types
• Sun and shade patterns throughout the day
• Soil type variations
• Slopes and drainage patterns
• Water source locations

Step 2: Group by Water Needs

Using colored pencils or markers, group areas with similar requirements. Remember: it's better to have more zones with precise control than fewer zones that compromise plant health.

Step 3: Calculate Water Pressure and Flow Rate

Determine your available water pressure (PSI) and flow rate (GPM) at the source. This will dictate how many emitters or sprinkler heads you can run per zone. Most residential systems operate at 40-60 PSI with 5-10 GPM flow rates.

Step 4: Select Appropriate Irrigation Methods

Match irrigation technology to each zone:

• Drip irrigation: Best for gardens, shrubs, and trees—delivers water directly to roots with 90% efficiency
• Soaker hoses: Good for vegetable gardens and flower beds
• Spray heads: Suitable for lawns and groundcover
• Micro-sprayers: Ideal for densely planted areas

Step 5: Install Zone Valves and Controllers

Each zone needs its own valve connected to a programmable controller. Modern smart controllers can adjust watering based on weather data, soil moisture sensors, and seasonal changes—potentially saving 30-50% more water than traditional timers.

Common Zoning Mistakes to Avoid

Mixing Spray and Drip in One Zone

These systems operate at different pressures and flow rates. Always separate them into different zones for optimal performance.

Creating Zones That Are Too Large

Oversized zones lead to uneven water distribution. If you can't achieve uniform coverage, split the zone into smaller sections.

Ignoring Microclimates

That sunny corner near a south-facing wall or the perpetually damp area under the eaves—these microclimates need special attention and possibly their own zones.

Not Planning for Expansion

Leave capacity in your system for future zones. Install extra valve manifold positions and size your main line to accommodate additional zones.

Optimizing Your Zones for Maximum Efficiency

Install Rain Sensors and Soil Moisture Sensors

These devices prevent your system from watering when it's unnecessary, potentially reducing water use by 20-40%.

Use Pressure Regulators

Maintain consistent pressure in each zone to ensure even water distribution and prevent emitter damage.

Add Backflow Preventers

Protect your home's water supply from contamination—required by code in most jurisdictions.

Schedule Strategically

Water early morning (4-8 AM) to minimize evaporation. Stagger zone start times to maintain consistent pressure throughout your system.

Seasonal Adjustments for Different Zones

Your irrigation needs change dramatically with the seasons:

Spring: Gradually increase watering as plants break dormancy. High-water zones may need 50-75% of summer amounts.

Summer: Peak watering season. Monitor soil moisture closely and adjust for heat waves.

Fall: Reduce watering by 25-50% as temperatures cool and plant growth slows.

Winter: Most zones can be shut off entirely in cold climates. In mild climates, reduce to 10-25% of summer watering.

Calculating Zone Run Times

Use this simple formula:

Run Time (minutes) = (Inches of Water Needed × 60) ÷ Application Rate (inches per hour)

For example, if your lawn needs 1.5 inches per week and your sprinklers apply 1 inch per hour:

Run Time = (1.5 × 60) ÷ 1 = 90 minutes per week (split into 2-3 sessions)

Troubleshooting Zone Performance

Dry Spots in a Zone

• Check for clogged emitters or broken sprinkler heads
• Verify adequate pressure and flow rate
• Consider adding more emitters or adjusting spacing

Overwatered Areas

• Reduce run times or frequency
• Check for leaks in the system
• Improve drainage or consider relocating plants

Uneven Coverage

• Perform a catch-can test to measure distribution uniformity
• Adjust sprinkler head spacing or type
• Consider splitting into multiple zones

The ROI of Proper Irrigation Zoning

While the upfront investment in a properly zoned irrigation system may seem significant, the returns are substantial:

• Water savings: 30-50% reduction in water usage translates to lower utility bills
• Healthier plants: Reduced disease pressure and stronger root systems
• Time savings: Automated systems eliminate manual watering
• Property value: Professional irrigation systems increase home value
• Environmental impact: Significant reduction in water waste supports conservation efforts

Getting Started with Your Zoning Project

Whether you're installing a new system or retrofitting an existing one, proper zoning is achievable for any property size. Start with the basics:

1. Assess your current water usage and identify problem areas
2. Map your property and group plants by water needs
3. Invest in quality components—zone valves, controllers, and appropriate emitters
4. Consider professional consultation for complex properties
5. Monitor and adjust your system seasonally

Remember, irrigation zoning isn't a one-time setup—it's an evolving system that adapts to your landscape's changing needs. Regular maintenance, seasonal adjustments, and periodic system audits will ensure your investment continues to deliver water savings and healthy plants for years to come.

Conclusion

Effective irrigation zoning transforms water management from guesswork into precision agriculture. By matching water delivery to plant needs, you'll create a sustainable landscape that conserves resources while supporting vibrant, healthy growth.

Whether you're harvesting rainwater, managing a drip irrigation network, or optimizing your existing system, proper zoning is the foundation of water-wise gardening. Start planning your zones today, and you'll see the benefits in lower water bills, healthier plants, and the satisfaction of stewarding your outdoor space responsibly.
