Fixing Low Water Pressure in Your Irrigation System: Expert Solutions

Is Your Irrigation System Struggling with Low Water Pressure?

Low water pressure in your irrigation system can turn a lush, green lawn into a patchy, struggling landscape. If you've noticed weak sprinkler spray, uneven coverage, or dry spots in your yard, you're likely dealing with a water pressure issue that needs immediate attention.

As irrigation specialists, we've helped thousands of homeowners diagnose and fix low water pressure problems. In this comprehensive guide, we'll walk you through the most common causes and proven solutions to restore your irrigation system to peak performance.

Understanding Irrigation Water Pressure Requirements

Before diving into solutions, it's important to understand what constitutes proper water pressure for irrigation systems. Most residential sprinkler systems require between 30-50 PSI (pounds per square inch) to operate effectively. Drip irrigation systems can function at lower pressures (15-30 PSI), while spray heads and rotors need higher pressure to achieve proper coverage.

When pressure drops below these thresholds, you'll experience:

• Reduced spray distance and coverage area
• Uneven water distribution across your lawn
• Longer watering times to achieve adequate saturation
• Increased water waste due to inefficient operation
• Potential damage to plants from inconsistent watering

Common Causes of Low Water Pressure in Irrigation Systems

1. Clogged Filters and Screens

Sediment, debris, and mineral buildup can restrict water flow through your system's filters. This is often the easiest fix—simply clean or replace your filter screens regularly to maintain optimal flow.

2. Leaking Pipes or Fittings

Even small leaks can significantly reduce system pressure. Walk your property looking for wet spots, pooling water, or unusually green patches that might indicate underground leaks. Check all visible connections, valves, and sprinkler heads for drips or spray.

3. Partially Closed Valves

Main shut-off valves or zone valves that aren't fully open will restrict flow. Verify that all valves in your system are completely open, including the backflow preventer valves.

4. Undersized Piping

If your irrigation system was designed with pipes that are too small for your water demand, you'll experience chronic low pressure. This is especially common in older systems or DIY installations.

5. Municipal Water Supply Issues

Sometimes the problem isn't your system—it's your water source. Municipal water pressure can fluctuate based on demand, especially during peak usage hours. Contact your water utility to verify supply pressure.

6. Elevation Challenges

If you're irrigating uphill areas or multi-story properties, gravity works against you. Water naturally loses pressure as it travels upward, requiring additional boosting to reach higher zones.

7. Too Many Zones Running Simultaneously

Running multiple irrigation zones at once can overtax your water supply, causing pressure drops across the entire system. Ensure your controller is programmed to run zones sequentially, not simultaneously.

Professional Solutions for Low Irrigation Water Pressure

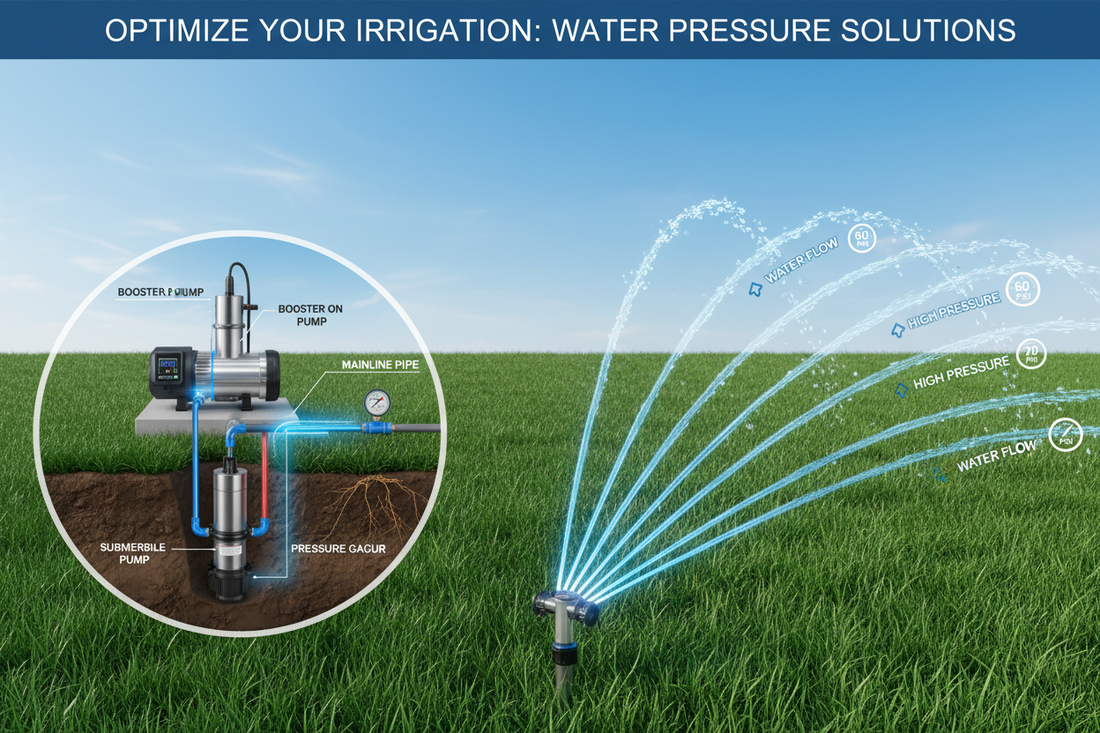

Install a Booster Pump System

When your municipal water supply or well can't provide adequate pressure, a booster pump is the most effective solution. These pumps increase water pressure throughout your irrigation system, ensuring consistent performance across all zones.

For residential applications, we recommend systems like the Aquastrong Smart 45 Whole House Water Pressure Booster Pump, which delivers up to 80 PSI with automatic variable speed control. This intelligent system adjusts output based on demand, providing constant pressure while minimizing energy consumption.

Key benefits of booster pumps include:

• Consistent pressure across all irrigation zones
• Ability to run multiple zones simultaneously
• Improved coverage and water distribution
• Reduced watering time and water waste
• Self-priming capability for easy installation

Upgrade to Submersible Pumps for Well Systems

If you're drawing water from a well, pond, or rainwater storage tank, a submersible pump provides reliable, high-pressure water delivery. Unlike surface pumps, submersible pumps operate underwater, offering quieter operation and better efficiency.

The WaterRebirth High Flow Submersible Pump delivers up to 4,900 GPH with a 250W motor, making it ideal for large irrigation systems or properties with significant water demands. For smaller applications, the Active Aqua 250 GPH Submersible Pump offers reliable performance in a compact package.

Submersible pumps excel in:

• Rainwater harvesting systems
• Pond or lake irrigation setups
• Deep well applications
• Off-grid or solar-powered irrigation
• Backup water supply systems

Optimize Your System Design

Sometimes the solution isn't adding equipment—it's redesigning your system for better efficiency:

• Zone properly: Group sprinklers with similar pressure requirements together
• Upgrade piping: Replace undersized pipes with larger diameter options
• Reduce friction loss: Minimize pipe length and eliminate unnecessary fittings
• Install pressure regulators: Maintain consistent pressure to each zone
• Use low-pressure sprinkler heads: Switch to models designed for lower pressure operation

DIY Troubleshooting Steps Before Calling a Professional

Before investing in new equipment, try these troubleshooting steps:

1. Test your static pressure: Attach a pressure gauge to an outdoor faucet and measure PSI with all water off
2. Check dynamic pressure: Measure pressure while the irrigation system is running
3. Inspect and clean filters: Remove and clean all filter screens and strainers
4. Verify valve operation: Ensure all valves open and close completely
5. Look for visible leaks: Run each zone and inspect for obvious water loss
6. Adjust zone timing: Reprogram your controller to run zones sequentially
7. Clean sprinkler heads: Remove debris and mineral deposits from nozzles

When to Upgrade Your Water Pump Solution

Consider upgrading to a professional pump system if you experience:

• Consistent pressure below 30 PSI during irrigation cycles
• Inability to run more than one zone at a time
• Dry spots or uneven coverage despite system adjustments
• Expansion of your irrigated area beyond original design
• Transition to well water or rainwater harvesting
• Installation of water features requiring additional pressure

Choosing the Right Pump for Your Irrigation System

Selecting the appropriate pump depends on several factors:

Flow Rate (GPM): Calculate your system's total gallons per minute requirement by adding up all sprinkler heads in your largest zone. Choose a pump that exceeds this demand by 10-20%.

Pressure Requirements (PSI): Determine the pressure needed at your highest or farthest sprinkler head, accounting for elevation and friction loss.

Water Source: Well systems typically require submersible pumps, while municipal supply augmentation uses booster pumps.

Power Supply: Most residential pumps operate on 115V household current, but larger systems may require 230V. Solar options like the BACOENG 24V DC Solar Water Pump offer off-grid solutions.

Automation Features: Modern pumps with variable speed drives and automatic pressure sensing provide superior efficiency and convenience.

Installation and Maintenance Best Practices

Proper installation ensures optimal performance and longevity:

• Install pumps in protected, ventilated locations away from weather exposure
• Use proper electrical connections with GFCI protection
• Install check valves to prevent backflow and maintain prime
• Add pressure tanks to reduce pump cycling and extend lifespan
• Winterize pumps in cold climates to prevent freeze damage
• Schedule annual maintenance including seal inspection and motor testing

The Bottom Line: Restoring Your Irrigation System Performance

Low water pressure doesn't have to mean compromising on your landscape's health and appearance. By identifying the root cause and implementing the right solution—whether that's simple maintenance, system optimization, or upgrading to a professional booster pump or submersible pump—you can restore your irrigation system to peak performance.

Remember that proper water pressure isn't just about aesthetics. Efficient irrigation conserves water, reduces utility costs, and promotes healthier plant growth through consistent, adequate hydration. Whether you're dealing with municipal supply limitations, well system challenges, or design inefficiencies, the right water pump solution can transform your irrigation performance.

Need help selecting the perfect pump for your irrigation system? Our team of water management specialists is here to help you find the ideal solution for your specific application, property size, and water source.
