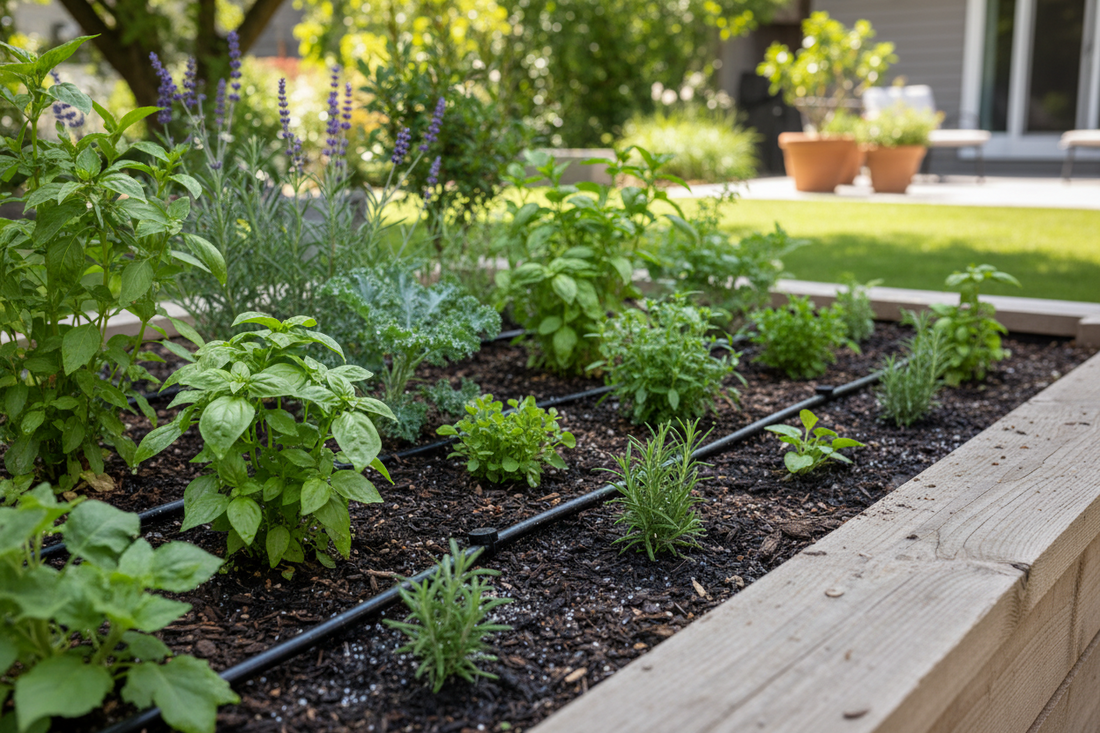

How to Retrofit Your Sprinkler System to Drip Irrigation

Transform Your Water Usage: A Complete Guide to Retrofitting Sprinkler Systems to Drip Irrigation

If you're looking to reduce water consumption, lower utility bills, and improve plant health, retrofitting your existing sprinkler system to drip irrigation is one of the smartest upgrades you can make. Drip irrigation delivers water directly to plant roots, reducing evaporation by up to 50% compared to traditional sprinklers while promoting healthier, more robust growth.

Why Switch from Sprinklers to Drip Irrigation?

Before diving into the retrofit process, it's important to understand the compelling benefits:

• Water Efficiency: Drip systems use 30-50% less water than conventional sprinklers by delivering moisture directly to root zones
• Cost Savings: Lower water bills translate to significant savings over time, with most homeowners seeing ROI within 2-3 years
• Healthier Plants: Consistent, targeted watering reduces disease pressure and promotes deeper root development
• Weed Reduction: By watering only desired plants, you'll see fewer weeds in pathways and unplanted areas
• Flexibility: Drip systems work on slopes, irregular terrain, and areas where sprinklers struggle

Step 1: Assess Your Current Sprinkler System

Start by evaluating your existing infrastructure. Walk your property and document:

• Location of sprinkler heads and zones
• Water pressure at the main line (ideal range: 25-30 PSI for drip systems)
• Type of controller and number of available zones
• Pipe material and size (typically ½" to 1" PVC or polyethylene)
• Areas that would benefit most from conversion (vegetable gardens, flower beds, foundation plantings)

Pro Tip: You don't have to convert your entire system at once. Many homeowners start with garden beds and landscaped areas while keeping sprinklers for lawns.

Step 2: Gather Your Materials

For a typical retrofit project, you'll need:

• Pressure regulator: Reduces line pressure to optimal levels (25-30 PSI) for drip components
• Filter: Prevents clogging of drip emitters (100-200 mesh recommended)
• Backflow preventer: May already be installed; required by code in most areas
• Drip tubing: ½" or ¼" polyethylene tubing as your main distribution lines
• Emitters: Choose from inline drippers, adjustable emitters, or drip tape depending on your application
• Fittings and connectors: Tees, elbows, end caps, and compression fittings
• Stakes and clips: To secure tubing in place
• Conversion adapters: To connect drip components to existing sprinkler risers

Step 3: Design Your Drip Layout

Proper planning prevents problems down the line:

1. Map your planting areas: Sketch out beds, rows, and individual plants that need irrigation
2. Calculate water requirements: Different plants have different needs; group plants with similar requirements together
3. Plan tubing runs: Main lines should follow the longest dimension of your beds, with lateral lines branching to individual plants
4. Select appropriate emitters: Use 1-2 GPH emitters for most shrubs and perennials, 0.5 GPH for smaller plants, and drip tape for vegetable rows
5. Check zone capacity: Ensure your existing zone valves can handle the flow rate of your planned drip system

Step 4: Install the Conversion Components

Now for the hands-on work:

At the Valve/Zone Level:

1. Turn off water supply to the zone you're converting
2. Install a pressure regulator after the zone valve (if not already present)
3. Add a filter downstream from the pressure regulator
4. Verify backflow prevention is in place

At the Sprinkler Head Level:

1. Remove existing sprinkler heads from risers
2. Install riser-to-drip conversion adapters (these typically have ½" compression fittings)
3. Connect your main drip line to the conversion adapter
4. Run tubing along planting beds, securing with stakes every 2-3 feet
5. Install emitters at appropriate spacing (typically 12-18" apart for most applications)
6. Cap the end of each drip line

Important: If you're capping off sprinkler heads you're not converting, use proper threaded caps rather than just removing the heads to prevent leaks.

Step 5: Adjust Your Controller Settings

Drip irrigation requires different run times than sprinklers:

• Frequency: Run drip zones more frequently but for shorter durations
• Duration: Start with 30-45 minutes per cycle and adjust based on soil moisture
• Timing: Early morning (4-6 AM) remains ideal to minimize evaporation
• Seasonal adjustment: Reduce frequency in cooler months; increase during peak summer

Many modern smart controllers can be programmed with specific settings for drip zones, automatically adjusting for weather conditions.

Step 6: Test and Fine-Tune Your System

Before considering the job complete:

1. Flush the system: Remove end caps and run water through lines to clear debris
2. Check for leaks: Inspect all connections while system is running
3. Verify emitter function: Ensure each emitter is delivering water at the expected rate
4. Monitor soil moisture: Use a soil probe or moisture meter to check that water is penetrating to root depth (typically 6-12")
5. Adjust as needed: Add emitters in dry spots, remove or relocate in overly wet areas

Maintenance Tips for Long-Term Success

Keep your retrofitted system running efficiently:

• Clean filters monthly during the growing season
• Flush lines at the start and end of each season
• Inspect emitters for clogs or damage quarterly
• Check for root intrusion around buried lines annually
• Winterize properly in cold climates by draining lines and protecting above-ground components

Common Retrofit Challenges and Solutions

Challenge: Existing water pressure is too high
Solution: Install a pressure regulator rated for drip irrigation (typically 25-30 PSI output)

Challenge: Uneven terrain causes inconsistent water delivery
Solution: Use pressure-compensating emitters that deliver consistent flow regardless of elevation changes

Challenge: Hard water causes mineral buildup in emitters
Solution: Use self-flushing emitters and periodically treat lines with acidic solutions designed for drip systems

Challenge: Existing zones cover too large an area for efficient drip conversion
Solution: Consider subdividing zones or converting only portions while maintaining sprinklers for turf areas

Cost Considerations and ROI

A typical residential retrofit project costs between $300-$800 for a medium-sized garden or landscape bed, depending on:

• Size of area being converted
• Quality of components selected
• Complexity of layout
• Whether you DIY or hire a professional

With water savings of 30-50% and reduced plant replacement costs due to healthier growth, most homeowners recoup their investment within 2-3 years.

Final Thoughts

Retrofitting your sprinkler system to drip irrigation is a practical, eco-friendly upgrade that pays dividends in water conservation, cost savings, and plant health. While the initial setup requires planning and effort, the long-term benefits make it one of the most valuable improvements you can make to your irrigation infrastructure.

Whether you're converting a small vegetable garden or an entire landscape, the principles remain the same: assess your current system, plan carefully, install quality components, and maintain regularly. Your plants—and your water bill—will thank you.

Ready to make the switch? Start with one zone or garden bed to gain confidence, then expand your drip irrigation system as you see the results. The future of efficient watering is here, and it's easier to achieve than you might think.
