DIY Rain Barrel Installation: Step-by-Step Guide

Why Install a Rain Barrel? The Benefits of DIY Rainwater Harvesting

Installing a rain barrel is one of the smartest investments you can make for your home and garden. A single 53-gallon rain barrel can capture over 600 gallons of water during a typical growing season, reducing your water bills by up to 40% while providing chemical-free irrigation for your plants. Whether you're an experienced DIYer or tackling your first rainwater harvesting project, this comprehensive guide will walk you through every step of the installation process.

What You'll Need for Your Rain Barrel Installation

Essential Materials

• 53-gallon collapsible rain barrel with overflow kit
• Rain barrel spigot kit (if not included)
• Downspout diverter or elbow adapter
• Cinder blocks or rain barrel stand (for elevation)
• Level
• Hacksaw or PVC cutter
• Drill with hole saw bit (typically 3/4" to 1")
• Teflon tape or plumber's putty
• Measuring tape
• Pencil or marker

Optional Upgrades

• Mosquito screen or mesh filter
• Garden hose for overflow management
• Second barrel for linking multiple units
• Brass spigot upgrade for durability

Step-by-Step Rain Barrel Installation Guide

Step 1: Choose the Perfect Location

Select a downspout that receives maximum rainfall runoff, ideally near your garden or landscaping areas. Ensure the ground is level and can support the weight of a full barrel (approximately 440 pounds when filled). The location should be easily accessible for connecting hoses and have adequate drainage for overflow.

Pro Tip: Position your barrel on the north or east side of your home to minimize algae growth from direct sunlight exposure.

Step 2: Prepare Your Foundation

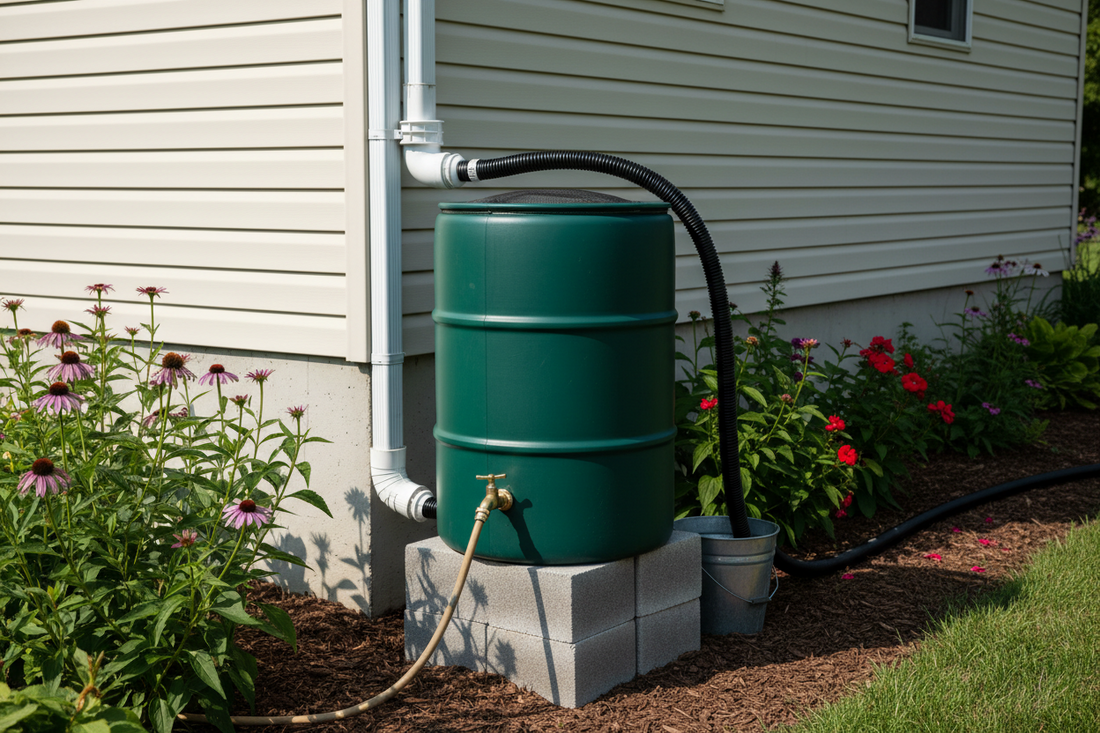

Elevate your rain barrel 12-24 inches off the ground using cinder blocks, a purpose-built stand, or a sturdy platform. This elevation serves two critical purposes: it creates water pressure for easier watering and allows space to fit a watering can beneath the spigot.

Use a level to ensure your platform is perfectly flat—this prevents uneven wear and ensures proper drainage. For our collapsible rain barrel models, a stable foundation is especially important to maintain the barrel's shape when full.

Step 3: Install the Spigot (If Not Pre-Installed)

If your barrel doesn't come with a pre-installed spigot, follow these steps:

1. Mark the spigot location 4-6 inches from the bottom of the barrel
2. Drill a pilot hole, then use the appropriate hole saw bit (check your spigot kit specifications)
3. Clean any plastic burrs from the hole
4. Apply Teflon tape to the spigot threads (3-4 wraps clockwise)
5. Insert the spigot from the outside, securing with the bulkhead fitting inside
6. Hand-tighten firmly, then give an additional quarter-turn with pliers
7. Test for leaks by filling the barrel partially

Material Matters: While PVC spigots work well, upgrading to a brass spigot kit provides superior durability and freeze resistance for year-round installations.

Step 4: Set Up the Overflow System

Proper overflow management is crucial for preventing foundation damage and mosquito breeding. Most quality rain barrels, including our complete rainwater collection systems, come with integrated overflow kits.

Install the overflow outlet near the top of the barrel, opposite the inlet side. Direct overflow water away from your foundation using a garden hose or PVC pipe, routing it to a rain garden, secondary barrel, or drainage area at least 10 feet from your home.

Step 5: Modify Your Downspout

Measure the distance from the top of your elevated barrel to the existing downspout. Mark and cut the downspout 2-3 inches above the barrel inlet using a hacksaw. Install a downspout diverter or flexible elbow adapter to direct water into your barrel.

Winter Consideration: If you live in a freeze-prone area, choose a diverter with a shut-off valve so you can redirect water back to the original downspout during winter months.

Step 6: Add Filtration and Mosquito Prevention

Install a fine mesh screen over the inlet opening to filter out leaves, debris, and roof sediment. This simple addition dramatically reduces maintenance and keeps your collected water cleaner. Ensure all openings, including the overflow, are screened to prevent mosquito breeding—even a small gap can become a problem.

Step 7: Test Your System

Before the next rainfall, test your installation by running water through your gutter system with a garden hose. Check for:

• Proper water flow into the barrel
• Secure connections at all fittings
• Spigot functionality and leak-free operation
• Overflow activation when barrel reaches capacity
• Stable barrel positioning under weight

Maximizing Your Rain Barrel System

Linking Multiple Barrels

A single 53-gallon barrel fills quickly during heavy rain. Consider linking two or more rain barrels together using connector kits. This multiplies your storage capacity and ensures you capture every drop during peak rainfall events.

Seasonal Maintenance Tips

• Spring: Clean and inspect all components, check for winter damage, reconnect downspouts
• Summer: Monitor water levels, clean screens monthly, check for algae growth
• Fall: Remove accumulated debris, prepare for winterization
• Winter: Drain completely, disconnect downspouts, store collapsible models indoors or cover rigid barrels

Water Usage Best Practices

Rainwater is perfect for:

• Watering vegetable gardens and flower beds
• Filling birdbaths and wildlife water features
• Washing vehicles and outdoor equipment
• Topping off ponds and water features
• Mixing compost and fertilizers

Important: Collected rainwater is not potable without proper treatment. Use it for outdoor irrigation and non-potable applications only.

Troubleshooting Common Installation Issues

Slow Drainage from Spigot

If water trickles slowly, you may need more elevation or have a clogged screen. Raise your barrel higher or clean the inlet filter. A 3/4" GHT brass spigot provides better flow rates than smaller diameter options.

Leaking Connections

Most leaks occur at the spigot or overflow fittings. Ensure you've used adequate Teflon tape and tightened connections properly. For persistent leaks, apply silicone sealant around the exterior of the fitting.

Barrel Overflow During Heavy Rain

If your barrel overflows frequently, consider adding a second linked barrel or installing a larger capacity system. Alternatively, add a rain garden beneath the overflow outlet to manage excess water sustainably.

Cost Savings and Environmental Impact

A properly installed rain barrel system pays for itself within 2-3 years through reduced water bills. Beyond financial savings, you're reducing stormwater runoff by up to 1,300 gallons per year, decreasing erosion, and providing your plants with naturally soft, chemical-free water that promotes healthier growth.

Ready to Start Your DIY Rainwater Harvesting Project?

Installing a rain barrel is a weekend project that delivers years of benefits. With the right equipment—like our premium 53-gallon collapsible rain barrels and professional-grade spigot kits—you'll have a reliable rainwater harvesting system that conserves water, saves money, and supports sustainable gardening practices.

Whether you're installing your first barrel or expanding an existing system, following these step-by-step instructions ensures a successful installation that will serve your garden for years to come. Start harvesting free water from your roof today and join the growing community of homeowners embracing sustainable water management.
